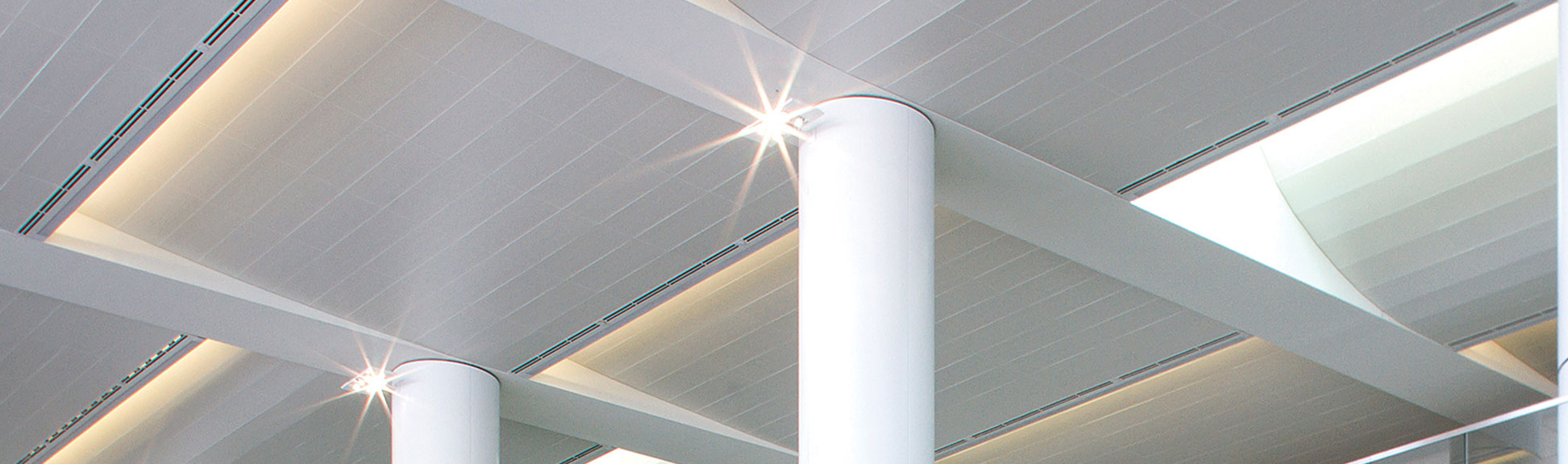

Designed using flat panels in a curved carrier, Torsion Spring Segmented metal ceilings offer point access and 100% access to the plenum from swing down panels making this sleek ceiling ideal for commercial spaces.

PIECE BY PIECE TO ACCESSIBLE DESIGN.

The key feature of this system is the engagement of the torsion spring mechanisms with the main and cross tees, allowing safe point access for sizes up to 36″ x 120″ and 48″ x 48″ in squares.

PRODUCT DETAILS

Two panel size sets:

  • 6″ to 36″ widths up to 120″ long
  • 48″ width up to 48″ long

Key Features

  • Swing-down feature allows point-access and 100% access to plenum
  • Square-edge design
  • Waste reduction with factory fabricated dimensional material
  • Downweight: reduce dead load with lightweight aluminum
  • Interior and exterior applications
  • Compatible with industry standard lighting, HVAC, speaker, fire safety and security services
  • High recycled aluminum content
  • Class A Fire Rated, per ASTM E-84
  • No VOCs: No added urea-formaldehyde
  • GREENGUARD Gold Certified

Physical Data

  • Substrate: Aluminum
  • Warranty: 1 year
  • Seismic rating: Zones A, B, C, D, E, F
  • Fire rating: Class A Fire Rated per ASTM E84
  • Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
  • Film on metal: Flame spread: ≤ 25, Smoke ≤ 50
  • Weight: Varies 1.0 – 1.5 lbs/sq. ft.
  • Wind load: N/A
  • Recycled content: Up to 85%
  • Light reflectance (LR) Coefficient per ASTM E1264 & ASTM E1477:
  • Light reflectance (LR) Coefficient per ASTM E1264 & ASTM E1477:
  • Cotton White: LR = 0.81

Colors & Finishes

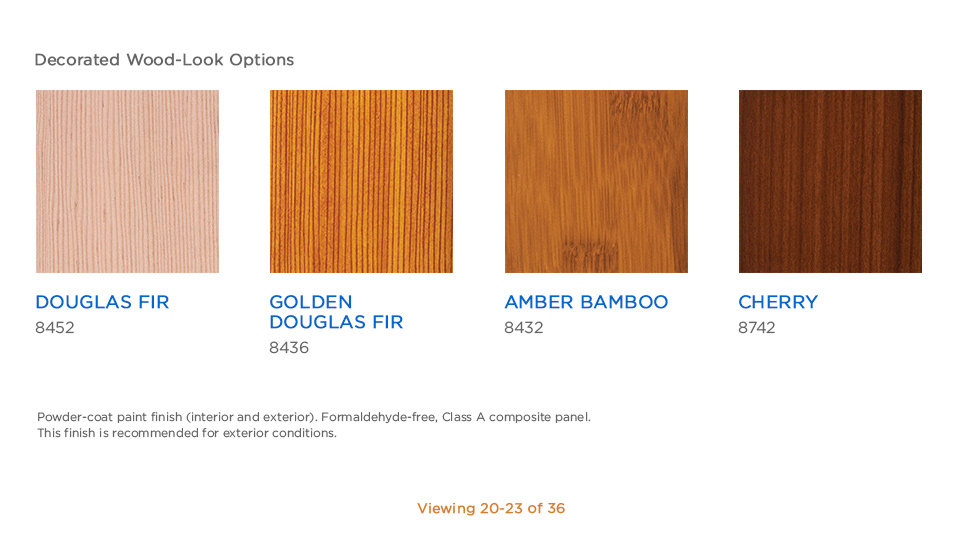

Finish Options
