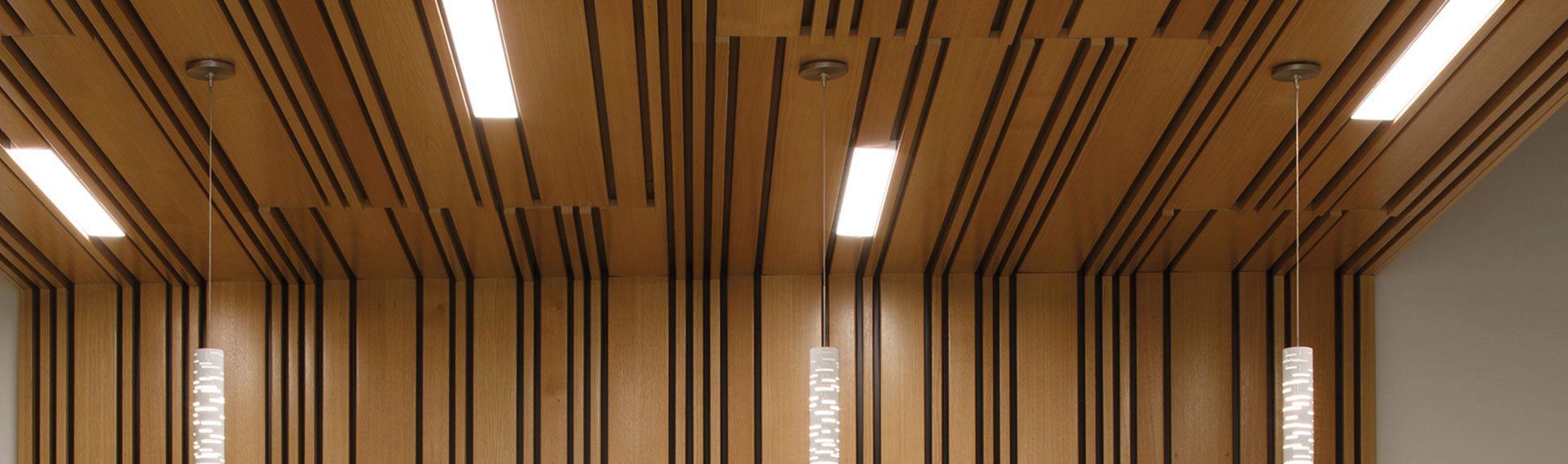

Multi-Box Networks offer unique design opportunities with mix and match patterns to establish texture and movement. Utilizing a universal carrier system allows fresh design perspectives on a classic theme.

DIMENSIONAL DESIGN WITH MODERN LINES.

The key feature of this system is the four linear panel widths, three depths and four lengths in 2″, 4″, 6″ and 8″ widths. The benefit is a variety of layout combinations.

PRODUCT DETAILS

Panel sizes:

  • Panel module widths: 2″, 4″, 6″ and 8″
  • Panel lengths: 4′, 6′, 8′ and 10′
  • Panel depths (nominal):
  • 5/8″ (Box 2, 4, 6 & 8)
  • 1″ (Deep Box 4, 6 & 8)
  • 1-1/2″ (Deep Box 2)

Key Features

  • Square-edge design
  • Downweight: reduce dead load with lightweight aluminum
  • Easy plenum access
  • Compatible with industry standard lighting, HVAC, speaker, fire safety and security services
  • LED light fixtures fitted for panel reveals
  • High recycled aluminum content
  • No VOCs: No added urea-formaldehyde
  • GREENGUARD Gold Certified

Physical Data

  • Substrate: Aluminum
  • Warranty: 1 year
  • Seismic rating: Zones A, B, C, D, E, F
  • Fire rating: Class A Fire Rated per ASTM E84
  • Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
  • Film on metal: Flame spread: ≤ 25, Smoke ≤ 50
  • Wood veneer on metal: Flame spread: ≤ 25, Smoke ≤ 55 (for interior applications)
  • Weight: Varies 0.5 – 1.5 lbs/sq. ft.
  • Wind load: Per code (for exterior applications)
  • Recycled content: Up to 92%
  • Light reflectance (LR) Coefficient per ASTM E1264 & ASTM E1477:
  • Cotton White: LR = 0.81

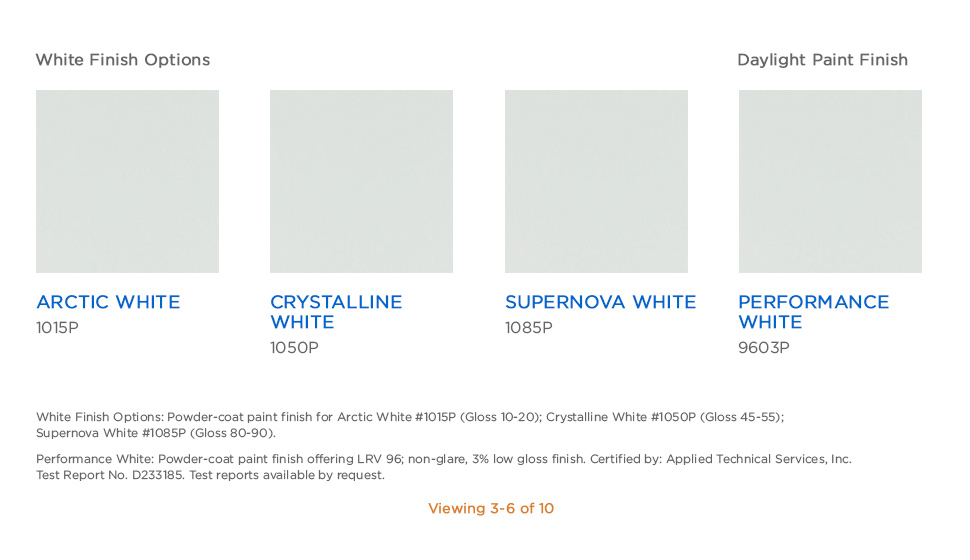

Colors & Finishes

Finish Options
