Accessibility and a multitude of design options, High Profile Series™ Straight Baffle ceiling system creates modern design with exacting fit and finishes.

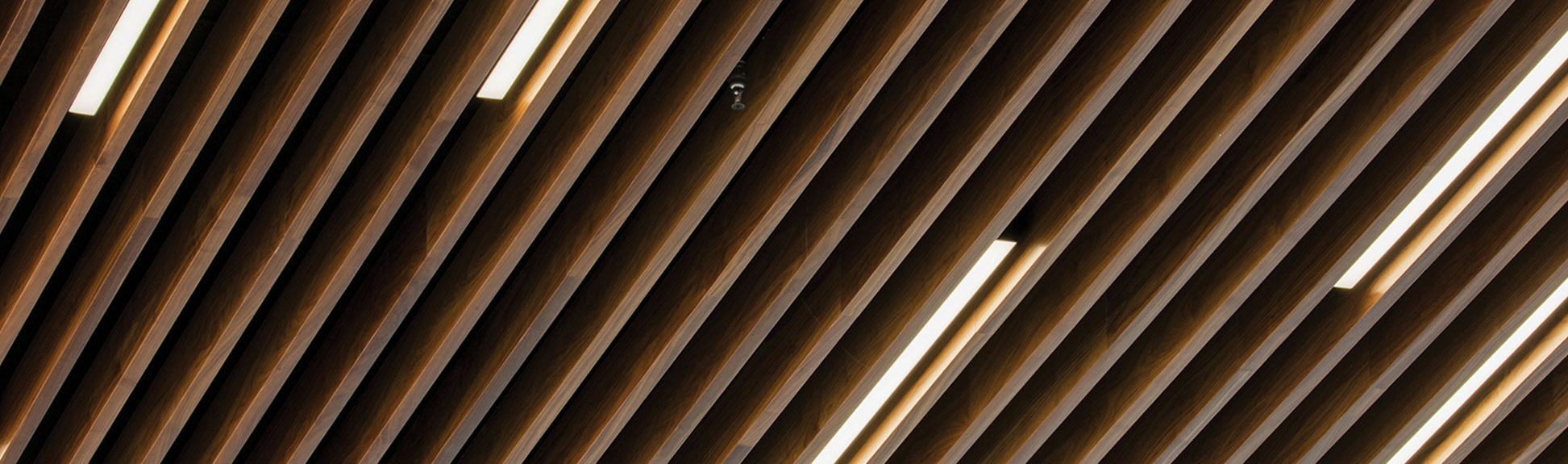

HIGH PROFILE SERIES™ - STRAIGHT BAFFLE CEILING

RAISING THE BAR ON VERSATILITY.

The key feature of this system is the Unistrut® support system. The benefit is the baffles can be collapsible for easy accessibility.

PRODUCT DETAILS

Beam Sizes:
Aero Profile

  • 1-5/8″ x 6-3/8″

Sweep Profile

  • 1-3/4″ x 6-3/8″

Beam Profile

  • 1-1/2″ x 4-3/8″
  • 1-1/2″ x 6-3/8″
  • 1-1/2″ x 8-3/8″
  • 2″ x 4″
  • 2″ x 6″
  • 2″ x 8″
  • 4″ x 4″

Beam – Open

  • 4″ x 4″

Taper

  • 1-1/2″ x 8″

Crescent

  • 4″ x 6-3/8″

Note: Client specific shapes and finishes available

Key Features

  • Extruded aluminum profiles with exacting fit and finish
  • Seamless baffles up to 20 feet in length
  • Unistrut® support system
  • Baffles can be collapsible along Unistrut® for easy accessibility
  • Client-specific suspension systems
  • Patented locking mechanism
  • Recycled content
  • No VOCs: No added urea-formaldehyde
  • GREENGUARD Gold Certified

Physical Data

  • Substrate: Aluminum
  • Warranty: 1 year
  • Seismic rating: Zones A, B, C, D, E, F
  • Fire rating: Class A Fire Rated per ASTM E84
  • Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
  • Wood veneer on metal: Flame spread: ≤ 25, Smoke ≤ 55 (for interior applications)
  • Weight: Varies 2.0 – 4.0 lbs/sq. ft.
  • Wind load: N/A
  • Recycled content: Minimum of 50%
  • Light reflectance (LR) Coefficient per ASTM E1264 & ASTM E1477:
  • Cotton White: LR = 0.81

Colors & Finishes

Finish Options
