CUSTOMIZABLE & CONFIGURABLE ALUMINUM BEAMS.

Straight and curved elements, smooth joins, and hidden splices that fit together into screens, rafters, and an unlimited range of unique wall and ceiling elements. Available with many support options, including traditional threaded rods, Unistrut® supports, or aircraft cables for lower visibility. Expert, in-house design support and engineering helps meet design intent, optimize material cost, and reduce installation effort.

PRODUCT DETAILS

Beam Sizes:
Beam Profile

• 1-1/2″ x 4-3/8″
• 1-1/2″ x 6-3/8″
• 1-1/2″ x 8-3/8″
• 2″ x 8″

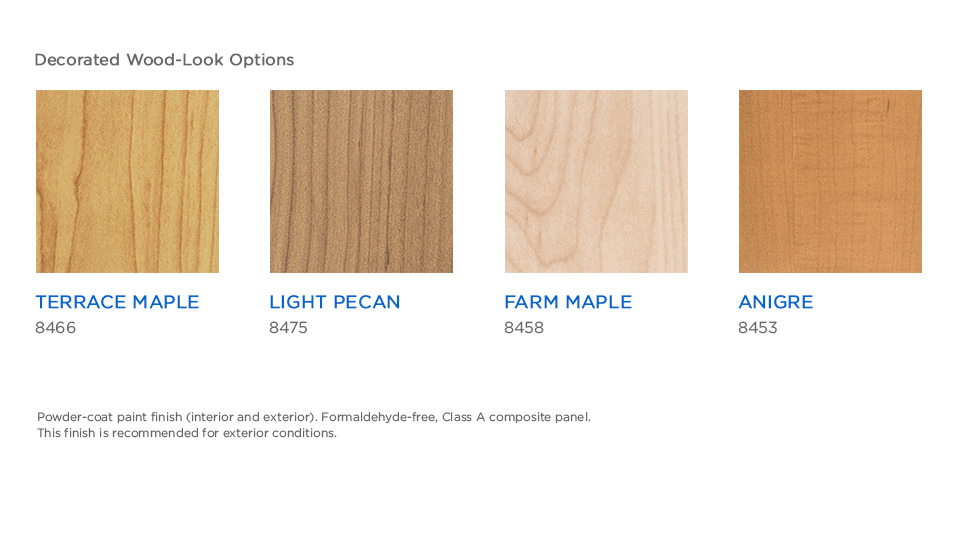

Note: Client specific shapes and finishes available

Key Features

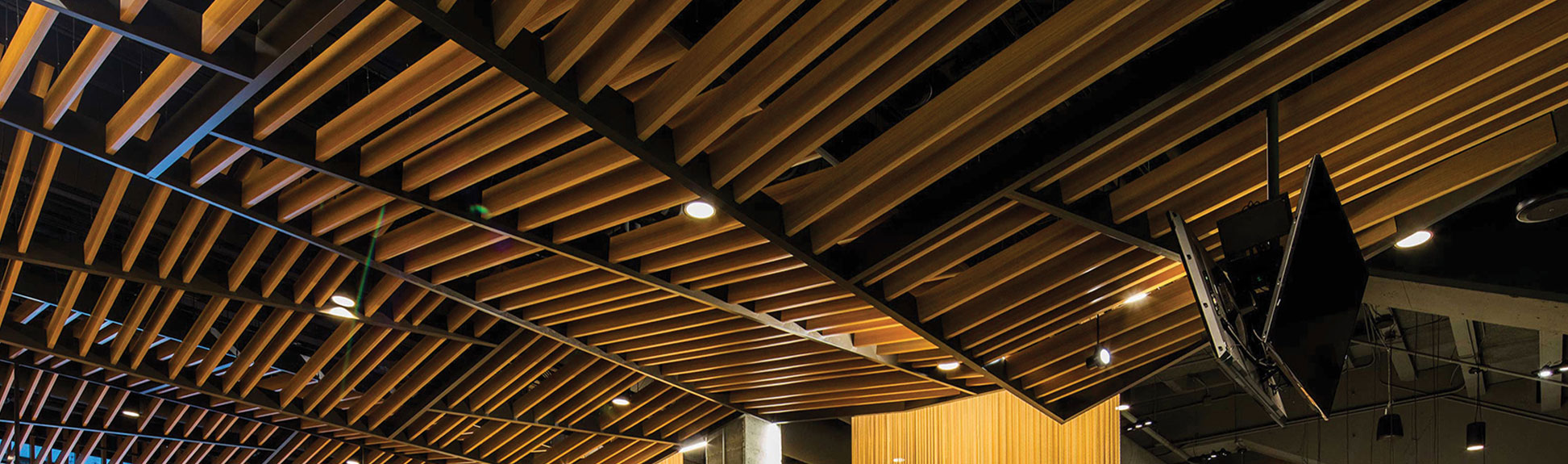

• Extruded aluminum beam configurations can be customized to create one-off ceiling designs
• Precision-cut straight and curved elements to create peaks, valleys, angles, walls & screens
• Seamless baffles up to 20 feet in length
• Integrated lighting options
• Versatile support options include threaded rods, Unistrut® support system or aircraft cables for lower visibility
• Patented locking mechanism
• Recycled content
• No VOCs: No added urea-formaldehyde
• GREENGUARD Gold Certified

Physical Data

• Substrate: Aluminum
• Warranty: 1 year
• Seismic rating: Zones A, B, C, D, E, F
• Fire rating: Class A Fire Rated per ASTM E84
• Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
• Wood veneer on metal: Flame spread: ≤ 25, Smoke ≤ 55 (for interior applications)
• Weight: Varies 2.0 – 4.0 lbs/sq. ft.
• Wind load: N/A
• Recycled content: Minimum of 50%
• Light reflectance (LR) Coefficient per ASTM E1264 & ASTM E1477:
• Cotton White: LR = 0.81
