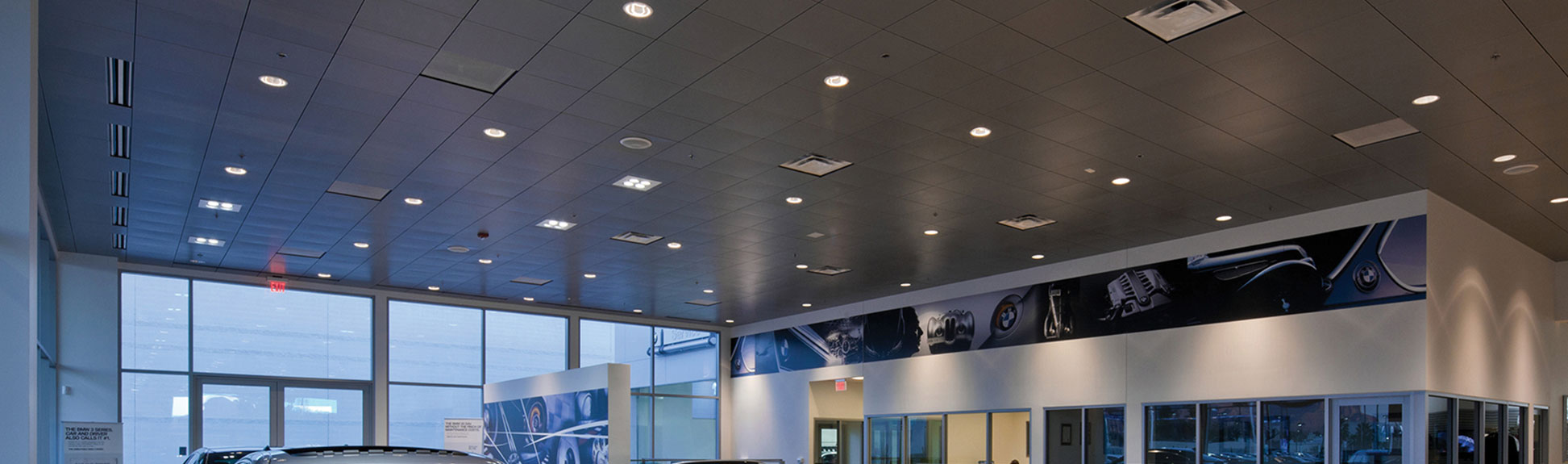

CEILINGS THAT CLICK WITH DESIGN.

The key feature is the patented “stab and click” design. The benefit is Gladius snaps into a standard 15/16″ grid system.

PRODUCT DETAILS

Panel size:

• 24″ x 24″

Key Features

• Square-edge design
• Waste reduction with factory fabricated dimensional material
• Downweight: reduce dead load with lightweight aluminum
• Easy plenum access
• Interior and exterior applications
• Compatible with industry standard lighting, HVAC, speaker, fire safety and security services
• High recycled aluminum content
• No VOCs: No added urea-formaldehyde
• GREENGUARD Gold Certified

Physical Data

• Substrate: Aluminum
• Warranty: 1 year
• Seismic rating: Zones A, B, C, D, E, F
• Fire rating: Class A Fire Rated per ASTM E84
• Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
• Weight: 1.0 lbs/sq. ft.
• Wind load: Per code (for exterior applications)
• Recycled content: Up to 92%
• Light reflectance (LR) Coefficient per ASTM E1264 & ASTM E1477:
• Cotton White: LR = 0.81
