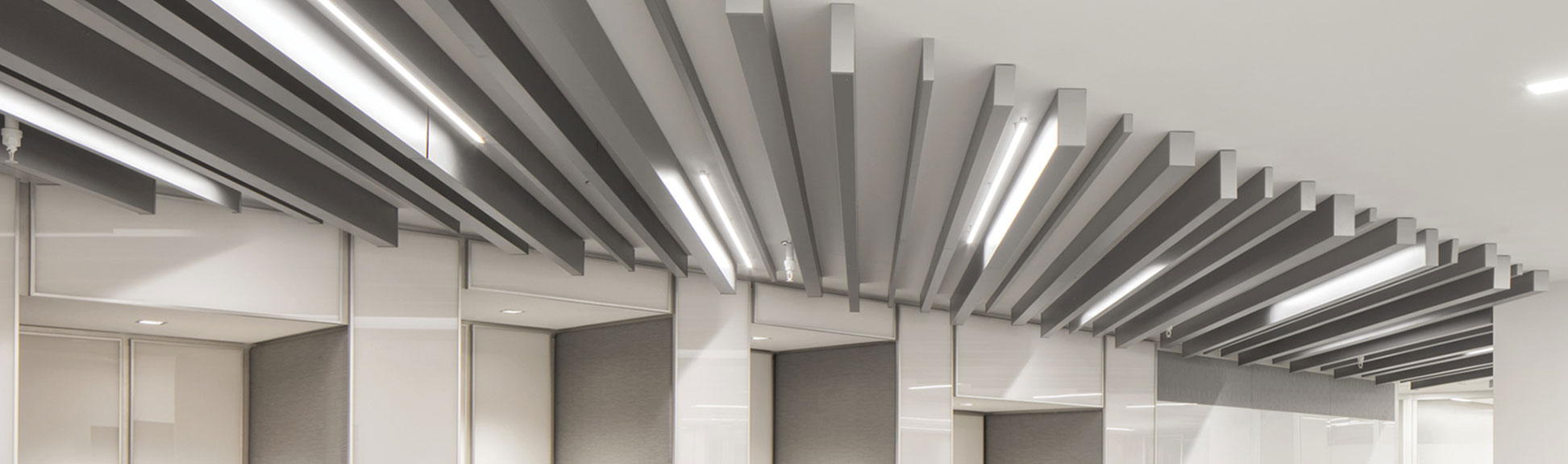

LAYERED DESIGN. FLOWING CEILINGS.

The standard heavy-duty 15/16″ T-grid suspension allows for ease of installation.

PRODUCT DETAILS

Dimensions:

• Create topography with multiple beam heights and multiple beam widths
• Multitude of profile dimensions up to 12′ long

Key Features

• Perforation patterns provide elevated acoustics
• Standard heavy-duty 15/16″ T-grid suspension
• Waste reduction with factory fabricated dimensional material
• Downweight: reduce dead load with lightweight aluminum
• Compatible with industry standard lighting, HVAC, speaker, fire safety and security services
• High recycled aluminum content
• No VOCs: No added urea-formaldehyde
• GREENGUARD Gold Certified

Physical Data

• Substrate: Aluminum
• Warranty: 1 year
• Seismic rating: Zones A, B, C, D, E, F
• Fire rating: Class A Fire Rated per ASTM E84
• Painted or anodized metal: Flame spread: < 25, Smoke < 50
• Wood veneer on metal: Flame spread: < 25, Smoke < 55 (for interior applications)
• Weight: Varies 0.5 – 2.0 lbs/sq. ft.
• Wind load: N/A
• Recycled content: Up to 85%
• Light reflectance (LR) Coefficient per ASTM E1264 & ASTM E1477:​
• Cotton White: LR = 0.81
