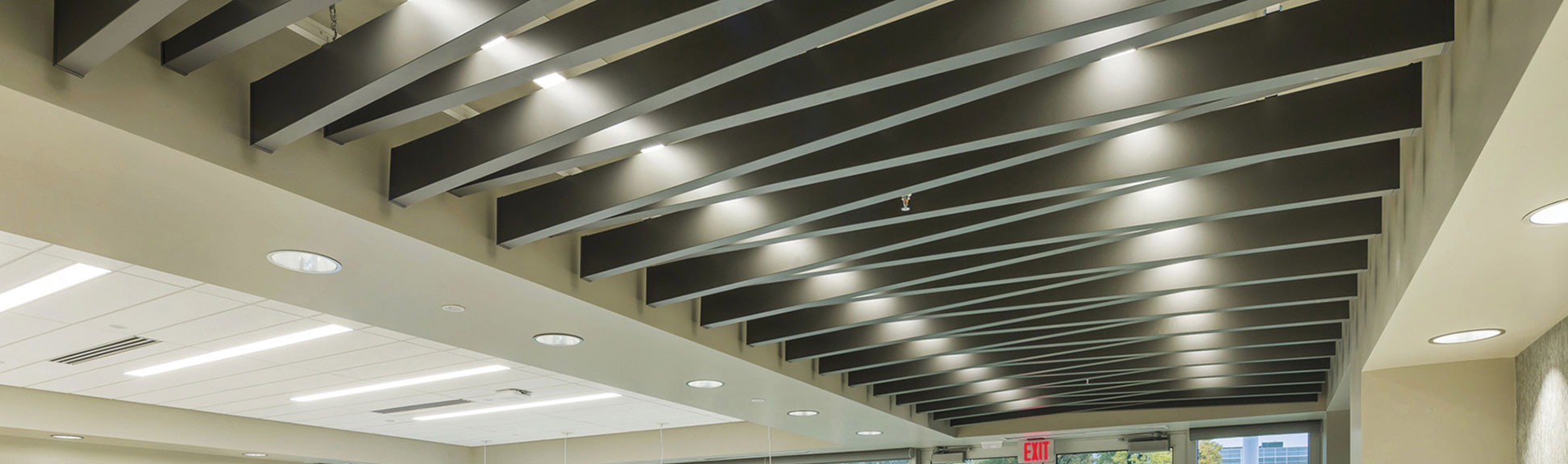

DESIGN WITH BIAS.

The key feature of this system is the standard heavy-duty 15/16″ T-grid suspension. This allows for the benefit of easy installation and compatibility.

PRODUCT DETAILS

• Create movement with individual sloping beam dimensions
• Three beam types, three beam depths:
• 2″ – 6″, 2″ – 4″, 4″ – 6″

Key Features

• Standard heavy-duty 15/16″ T-grid suspension
• Waste reduction with factory fabricated dimensional material
• Downweight: reduce dead load with lightweight aluminum
• Compatible with industry standard lighting, HVAC, speaker, fire safety and security services
• High recycled aluminum content
• No VOCs: No added urea-formaldehyde
• GREENGUARD Gold Certified

Physical Data

• Substrate: Aluminum
• Warranty: 1 year
• Seismic rating: Zones A, B, C, D, E, F
• Fire rating: Class A Fire Rated per ASTM E84
• Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
• Weight: Varies 0.5 – 2.0 lbs/sq. ft.
• Wind load: N/A
• Recycled content: Up to 85%
• Light reflectance (LR) Coefficient per ASTM E1264 & ASTM E1477:
• Cotton White: LR = 0.81
