GO BIG. GO FLAT. GO QUIET. GO EASY.

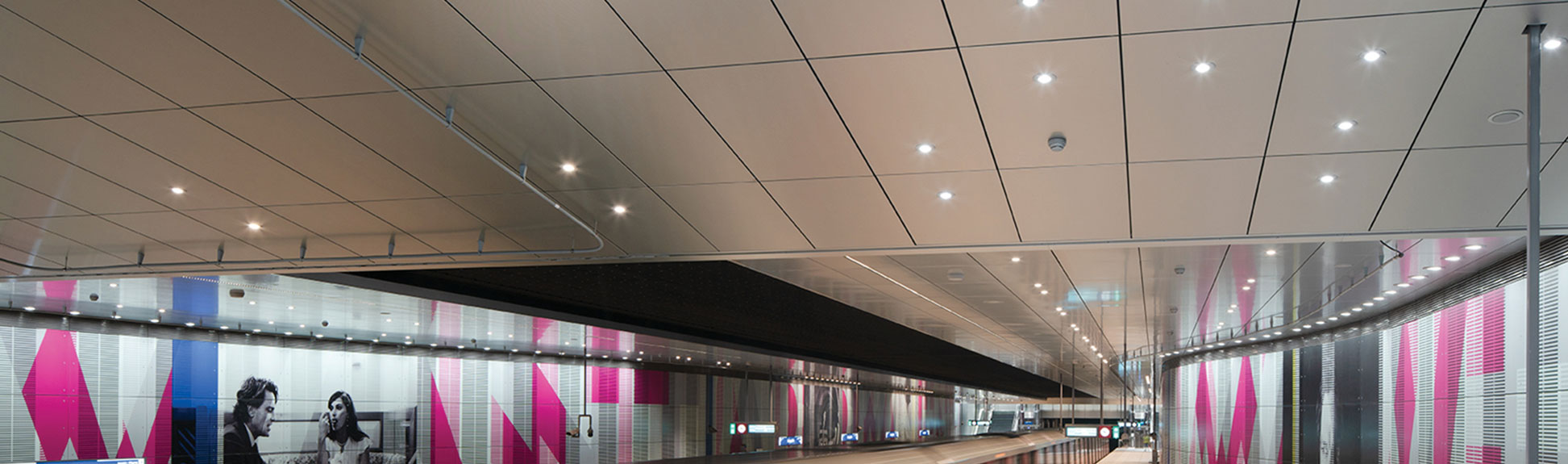

The large size of PLAZA™ simplifies installation and creates a monolithic appearance.

PRODUCT DETAILS

Panel sizes:

• 24″ x 48″, 60″, 72″, 96″, 120″
• 30″ x 30″, 60″, 120″
• 36″ x 36″, 48″, 60″, 72″, 90″, 120″
• 48″ x 48″, 60″, 72″, 96″, 120″

Key Features

• Swing-down feature allows point-access and 100% access to plenum
• 1/4″ reveal at all sides

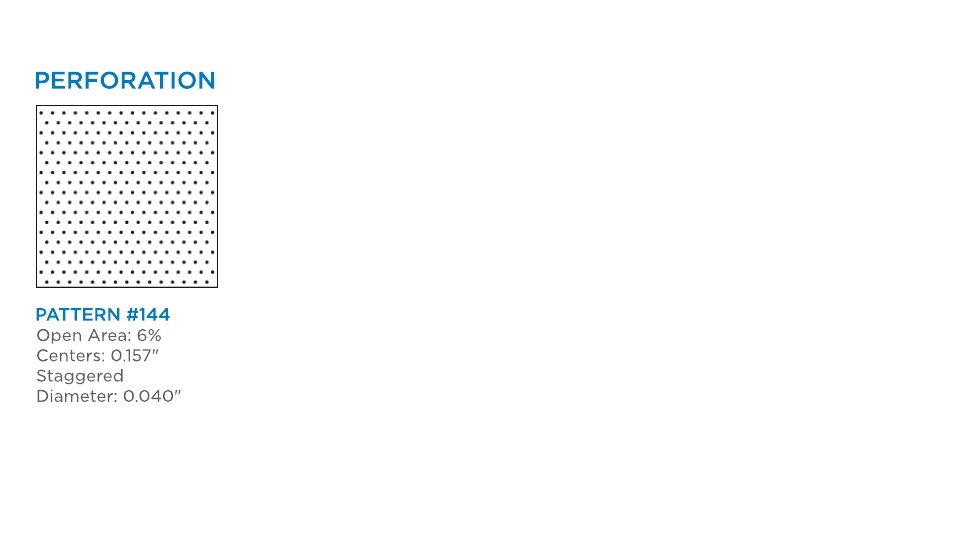

• Micro perforation for elevated acoustics
• Waste reduction with factory fabricated dimensional material
• Downweight: reduce dead load with lightweight aluminum
• Interior application
• Compatible with industry standard lighting, HVAC, speaker, fire safety and security services
• High recycled aluminum content
• No VOCs: No added urea-formaldehyde

Physical Data

• Substrate: Aluminum Honeycomb Composite
• Warranty: 1 year
• Seismic rating: Zones A, B, C, D, E, F
• Fire rating: Class A Fire Rated per ASTM E84
• Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
• Weight: Varies 1.0 – 2.0 lbs/sq. ft.
• Wind load: N/A
• Recycled content: Up to 85%
• Light reflectance (LR) Coefficient per ASTM E1264 & ASTM E1477:
• Plaza White: LR = 0.81
