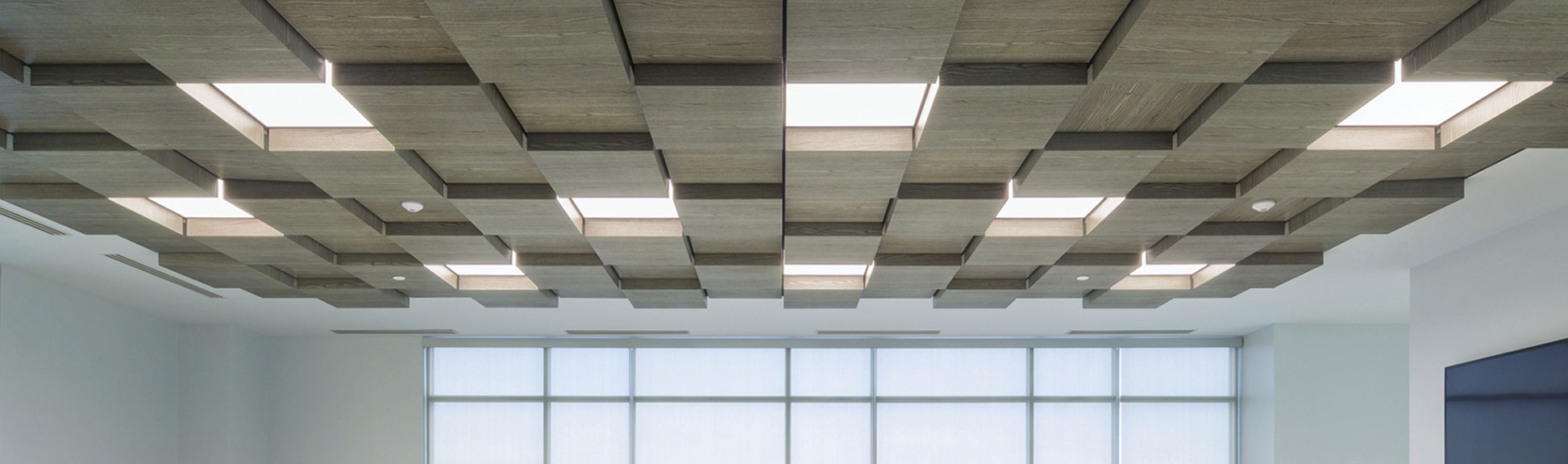

PATTERNED MOVEMENT

The key feature of this system is the wide range of ceiling depths, perforations, and finish options. The benefit is complete design flexibility.

PRODUCT DETAILS

Four panel size options:

• 12″ wide up to 72″ long
• 20″ wide up to 60″ long
• 24″ wide up to 72″ long
• 30″ wide up to 60″ long

Key Features

• Square-edge design
• Various panel depths from 4″ above grid face to 4″ below grid face
• Waste reduction with factory fabricated dimensional material
• Downweight: reduce dead load with lightweight aluminum
• Easy plenum access
• Compatible with industry standard lighting, HVAC, speaker, fire safety and security services
• High recycled aluminum content
• No VOCs: No added urea-formaldehyde
• GREENGUARD Gold Certified

Physical Data

• Substrate: Aluminum
• Warranty: 1 year
• Seismic rating: Zones A, B, C, D, E, F
• Fire rating: Class A Fire Rated per ASTM E84
• Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
• Weight: Varies 0.75 – 1.0 lbs/sq. ft.
• Wind load: N/A
• Recycled content: Up to 85%
• Light reflectance (LR) Coefficient per ASTM E1264 & ASTM E1477:
• Cotton White: LR = 0.81
