ENDLESS DESIGN. LASTING IMPRESSION.

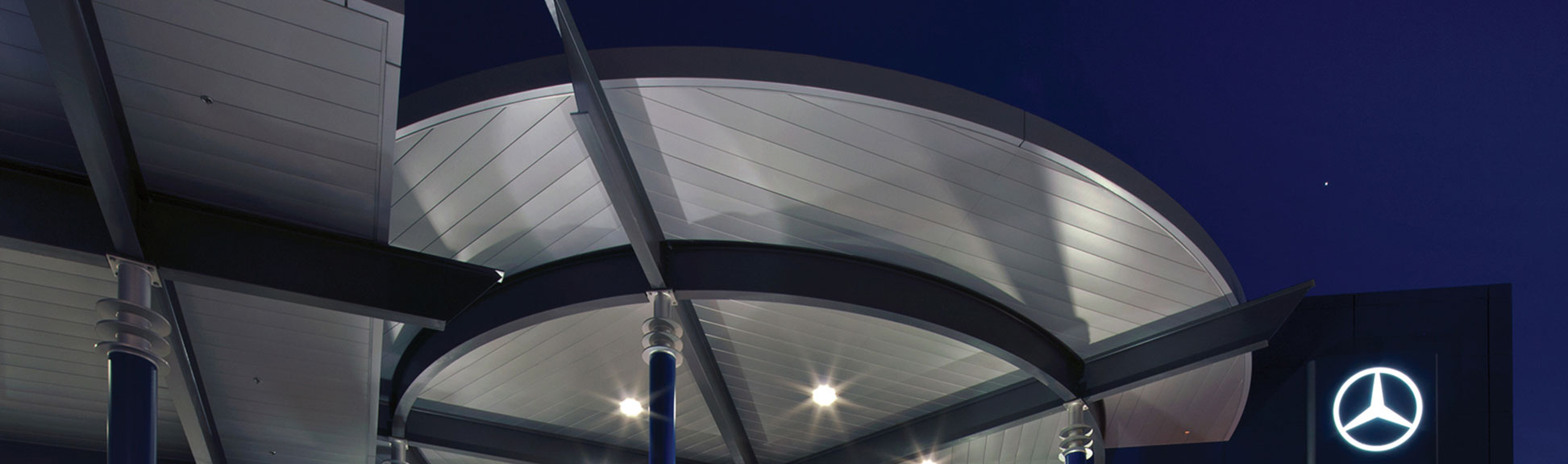

This ceiling system is designed to withstand wind loads in exterior environments. The benefit is the ceiling can create a continuous design from interior to exterior.

PRODUCT DETAILS

Panel sizes:

• Panel width: 12″ nom. [300 mm]
• Panel length: 3′ to 19′-8″

Key Features

• Bevel-edge design
• Waste reduction with factory fabricated dimensional material
• Downweight: reduce dead load with lightweight aluminum
• Interior and exterior applications
• Compatible with industry standard lighting, HVAC, speaker, fire safety and security services
• Perforated panels available for ventilation
• Factory assembled access doors available
• Miami-Dade NOA 19-0214.02 (expires March 19, 2020)
• Ventilation panels available; see Miami-Dade certificate.
• High recycled aluminum content
• No VOCs: No added urea-formaldehyde
• GREENGUARD Gold Certified

Physical Data

• Substrate: Aluminum
• Warranty: 1 year
• Seismic rating: Zones A, B, C, D, E, F
• Fire rating: Class A Fire Rated per ASTM E84
• Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
• Weight: Varies 0.5 – 0.75 lbs/sq. ft.
• Wind load: Per code
• Designed and tested in accordance with the requirements of the Florida Building Code 5th edition (2014), including the High Velocity Hurricane Zone (HVHZ) provisions and Miami-Dade requirements.
• Miami-Dade NOA 19-0214.02 (expires March 19, 2020)
• Recycled content: Up to 92%
• Light reflectance (LR) Coefficient per ASTM E1264 & ASTM E1477:
• Cotton White: LR = 0.81
