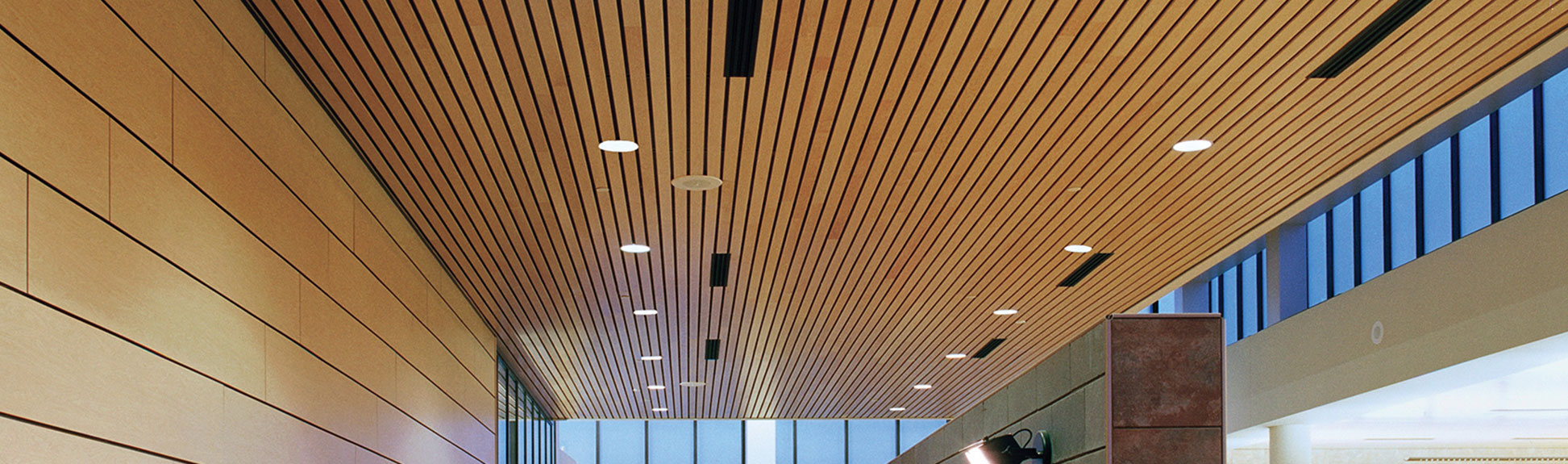

Our Box series of metal ceiling systems deliver both style and sustainability to any commercial project. Featuring crisp module definition, and made with up to 92% recycled materials, this versatile system works well for both interior and exterior applications.

MODERN LINES. SLEEK FINISHES. OPTIONS IN DESIGN.

The key feature of this system is the universal carrier. The benefit is simple design and installation.

PRODUCT DETAILS

Panel sizes:

  • Panel module widths: 2″, 4″, 6″ and 8″
  • Panel lengths: 3′ to 16′
  • Panel depths (nominal):
  • 5/8″ (Box 2, 4, 6 & 8)
  • 1-1/2″ (Deep Box 2)
  • 1″ (Deep Box 4, 6 & 8)

Key Features

  • Square-edge design
  • Curved carrier application available
  • Waste reduction with factory fabricated dimensional material
  • Downweight: reduces dead load with lightweight aluminum
  • Easy plenum access
  • Interior and exterior applications
  • Compatible with industry standard lighting, HVAC, speaker, fire safety and security services
  • High recycled aluminum content
  • No VOCs: No added urea-formaldehyde
  • GREENGUARD Gold Certified

Physical Data

  • Substrate: Aluminum
  • Warranty: 1 year
  • Seismic rating: Zones A, B, C, D, E, F
  • Fire rating: Class A Fire Rated per ASTM E84
  • Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
  • Film on metal: Flame spread: ≤ 25, Smoke ≤ 50
  • Wood veneer on metal: Flame spread: ≤ 25, Smoke ≤ 55 (for interior applications)
  • Weight: Varies 0.5 – 1.0 lbs/sq. ft.
  • Wind load: Per code (for exterior applications)
  • Recycled content: Up to 92%
  • Light reflectance (LR) Coefficient per ASTM E1264 & ASTM E1477:
  • Cotton White: LR = 0.81

Colors & Finishes

Finish Options
